Features主要特點

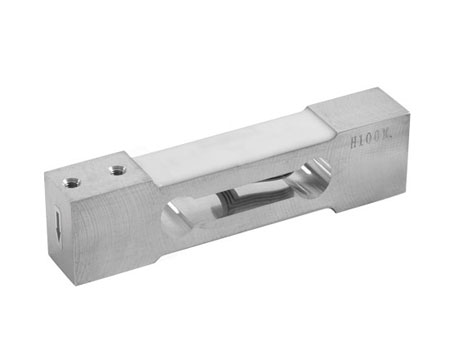

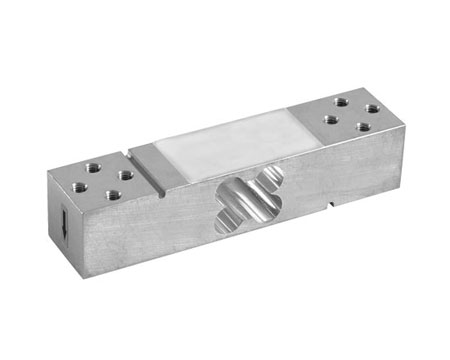

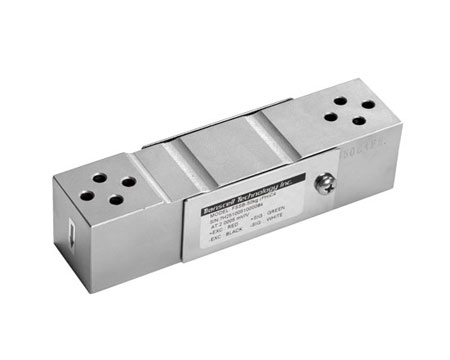

● Single point load cell
● Senior alloy steel
● High accuracy
● High stability
● Easy to install
● Protected against corrosion by nickelplated treatment
● High protection class
● Use in tough industrial environment
Capacities量程
● 150kg, 250kg, 500kg, 750kg, 1000kg
Specification 技術參數
|
Rated Output
|
2.0mV/V ±10%
|
|
Zero Balance
|
±1% of rated output
|
|
Creep after 30 minutes
|
±0.03% of rated output
|
|
Nonlinearity
|
±0.03% of rated output
|
|
Hysteresis
|
±0.03% of rated output
|
|
Repeatability
|
±0.03% of rated output
|
|
Temp. effect on output
|
≤0.002% of applied output/ºC
|
|
Temp. effect on zero
|
≤0.002% of rated output/ºC
|
|
Safe Temp. Range
|
-30ºC to + 70ºC
|
|
Temp. Compensated
|
-10ºC to + 40ºC
|
|
Safe Overload
|
150%
|
|
Input Impedance
|
387 ohm ± 20 ohm
|
|
Output Impedance
|
350 ohm ± 5 ohm
|
|
Insulation Resistance
|
≥5000 M ohm (50V DC)
|
|
Rated Excitation
|
10V DC/AC
|
|
Maximum Excitation
|
15V DC/AC
|
|
Cable Length
|
2.5m
|
|
Cable Color Code
|
Red(+E) Black(-E) Green(+S) White(-S)
|
|
